Type of Product: Changer   |

SM1100 Tire Changer

The SM1100 combines the best of multiple tire changer technologies; offering speed and efficiency throughout a wide range of applications. Easily adapts to ultra-low-profile, run-flat tires, special custom rims, every day wheels and even commercial light truck and industrial wheels.

Features

• Center-post quick lock clamping systems safely secures virtually all wheels without damage
• Easy access to the rim and true from the bottom and site without obscuring the work ears
• Reverse wheel claiming kit included.
• Leverless mount hear provides simple fingertip activated demounting of high-performance low profile, stiff sidewall run flats and commercial use multi-ply tires up to 40″ diameter and 12.5″ wide.
• A bead roller loosening system combines fingertip-operated power using finesse for protective service of difficult, expensive wheels.
• Side shovel adds speed, efficiency, and power to everyday applications
• Heavy duty 220V high torque 2-speed (8-15 rpm)

Power Supply: 220V, 1ph, L6-20P
Air Pressure: 115-145 psi (8-10 bar)
Rim Diameter (Ext.): 12" - 30"

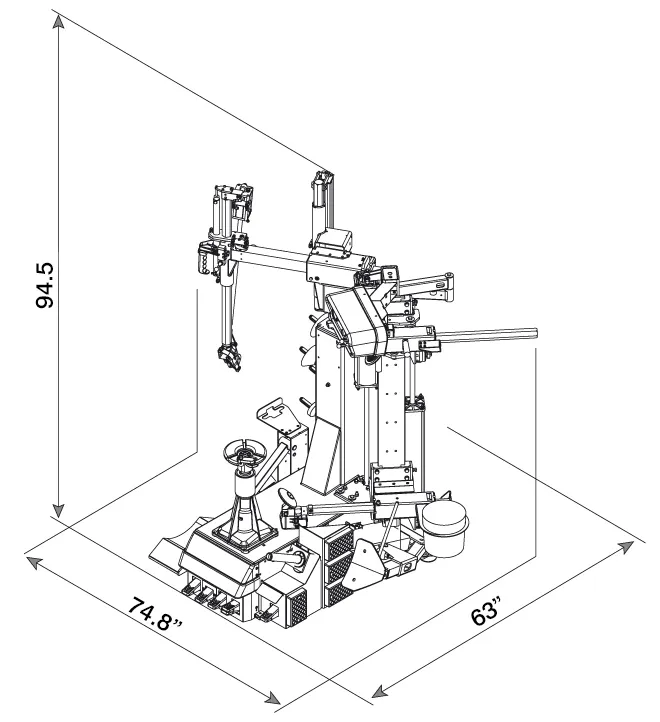

Dimensions:

Tire Diameter: 40" (1016 mm)
Max. Wheel Width: 15" (380 mm)
Turn Table Speed: 8-15 rpm
Shipping Weight: 1125 lbs (510 Kg)
