Type of Product: Balancer   |

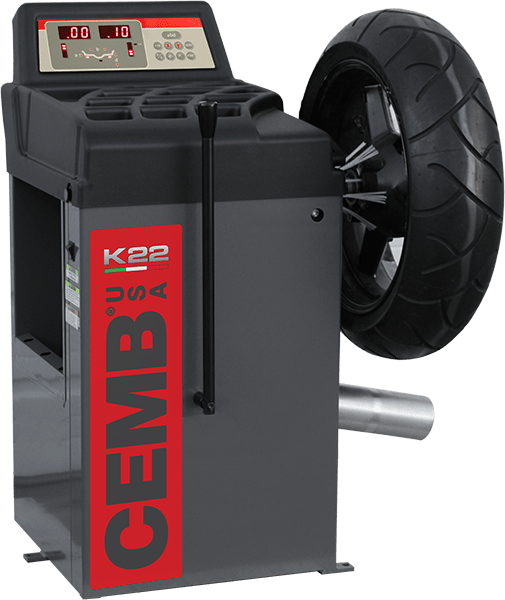

K22 Motorcycle

An exclusive design which saves time and provides a superior balance by eliminating the removal of wheel bearings and ensuring the wheel is centered on the motorcycle. The K22 can handle multiple applications including scooters, single swing arm wheels and super-wide Harley wheels.

Features

• Non-rotating balancer shaft spins the wheel on its own bearings. No bulky tire clamps required.
• Drive roller spins the wheel and also allows operator to check eccentricity while balancing.
• 2D Distance and Diameter Automatic Data Entry
• Static/Dynamic Modes
• 110v, 50/60 Hz.

Power Supply 110V, 1ph
Wheel Clamping Type Manual
Shipping Weight: 190 lbs. (86.18 kg)

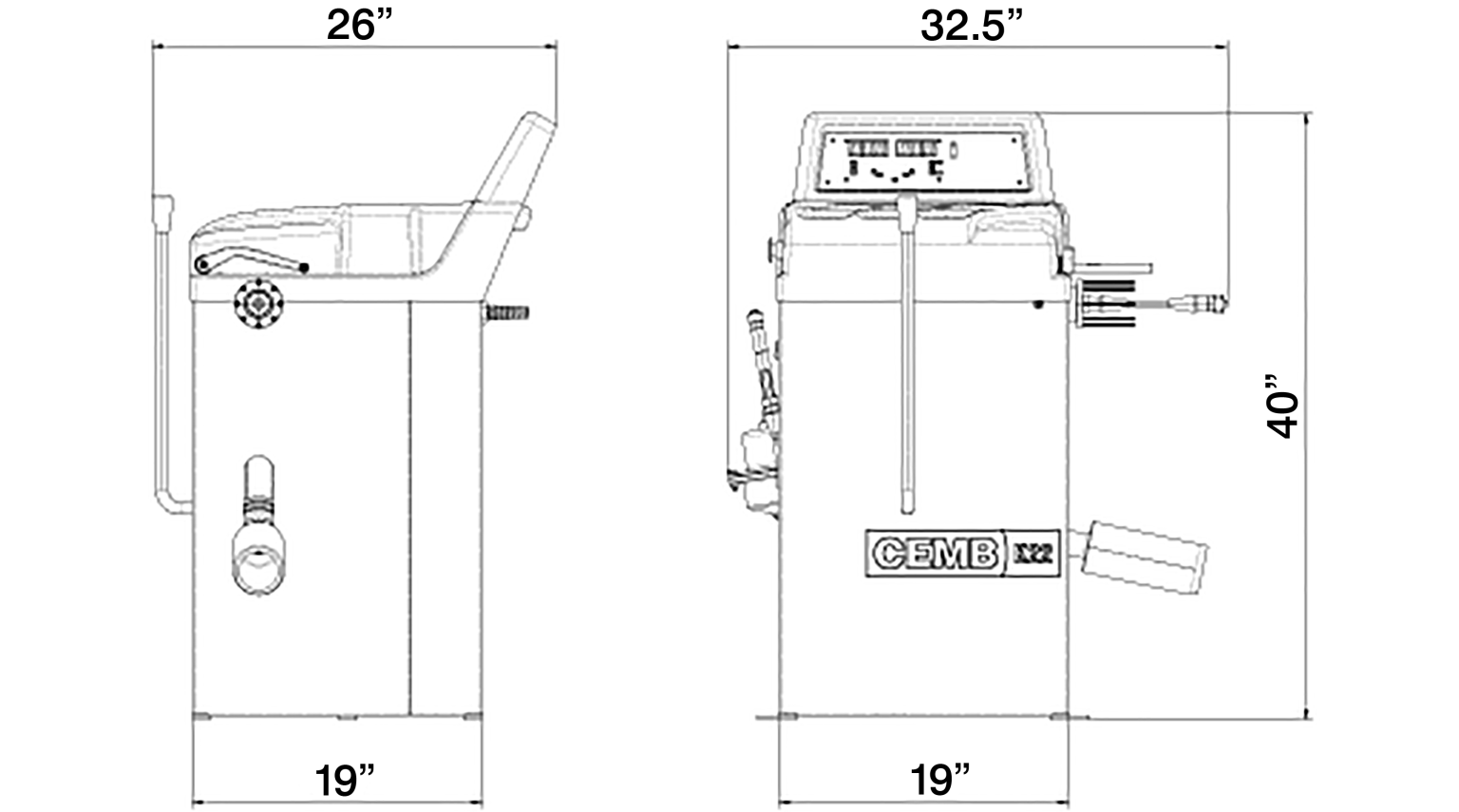

Dimensions:

Max. Rim Diameter 20" (510 mm)
Max. Rim Width 28" (711 mm)
Max. Tire Diameter: 42" (1067 mm)
Max. Wheel Weight: 165 lbs. (75 kg)
