Type of Product: Balancer   |

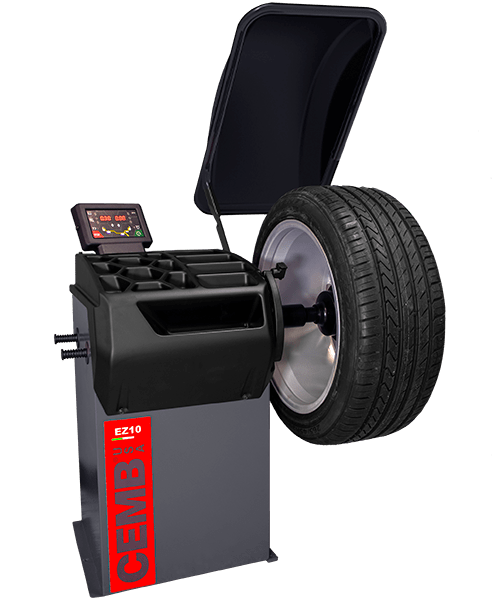

EZ10 Wheel Balancer

The EZ10 blends existing technical features – such as Auto Adaptive mode and Virtual Sonar – with the addition of an electromagnetic brake, which eases operations for counterweight application, making this space-saving wheel balancer unbeatable.

Features

• Fast 5-second cycle time. Quick clamping wing nut supplied standard.
• Automatic gauge to measure the distance and diameter of rims of up to 28” with an innovative clip to hold the adhesive weight.
• AutoAdaptive Mode – The new tolerance calculation system.
• Space Saving balancer with a 12” full resolution touch screen. It’s intuitive, durable and easy to use.
• With our innovative Virtual Sonar software we can automatically calculate the rim width without an external sonar or other measuring device.
• Electromagnetic brake for locking the wheel in the exact weight position.
• Automatic Approach system allows for faster floor to floor time.
• Made in Italy. Final assembly in USA.
• Power Supply: 110V, 1ph

Power Supply 110V, 1ph
Wheel Clamping Type Manual
Shipping Weight: 270 lbs. (122 kg)

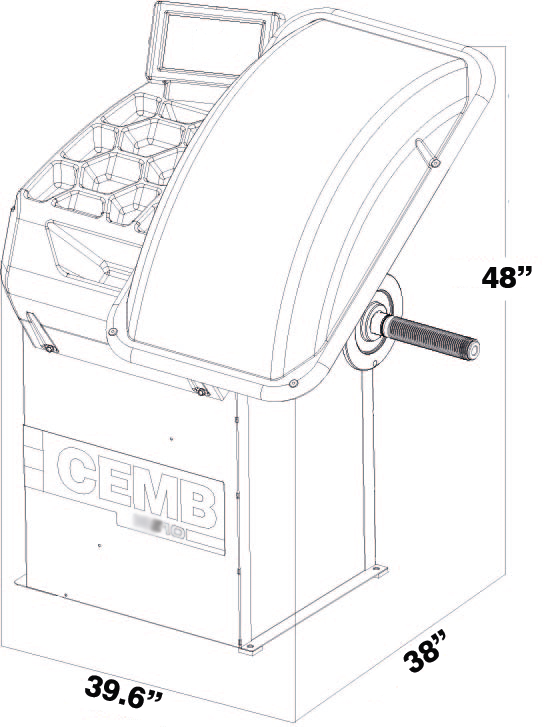

Dimensions:

Max. Rim Diameter 30" (765 mm)
Max. Rim Width 20" (510 mm)
Max. Tire Diameter: 36" (914 mm)
Max. Wheel Weight: 165 lbs. (75 kg)
