Type of Product: Balancer   |

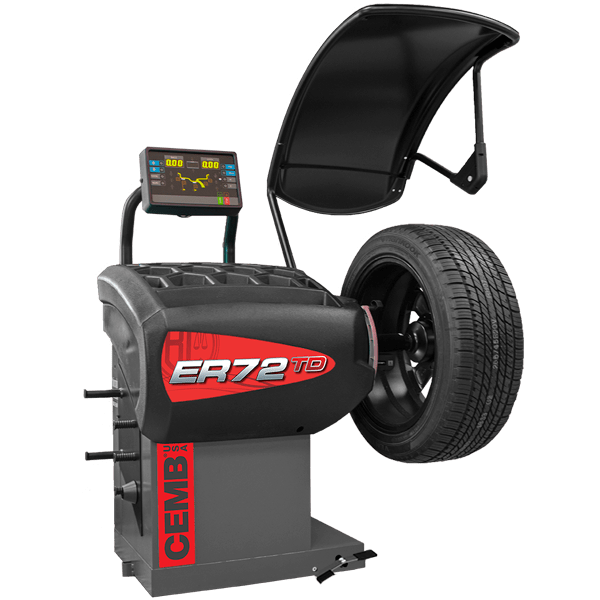

ER72TD (Manual Clamping) & ER72SE (Pneumatic Clamping) Wheel Balancer

The CEMB Digital Wheel Balancer is made especially for busy tire shops. This new series has the latest technology in wheel balancing, “Spotter” lasers that actually pinpoints the exact location of stick-on wheel weights. This is done with little or no chance of operator error when entering dimensions (major cause of check spin errors).
Full Time Static on screen for a perfect balance. The automatic arm measures diameters up to 30″, automatic entry of the dimensions with width sonar 3D. It comes fully assembled.

Features

ER72TD (Manual Clamping)

• Fast 5-second cycle time. Quick clamping wing nut supplied standard.
• Dynamic AutoAdaptive OPB balancing software.
• CEMB balancing software automatically resolves residual static unbalance commonly left behind when dynamically balancing with traditional balancers causing hidden vibration complaints.
• An automatic laser spotter highlights the exact tape-on weight locations.
• Automatic LED lighting at the inside of the wheel greatly increases visibility.
• Automatic 3D direct weight placement (distance, diameter and width measurements) are included standard. No manual key pad entry required to balance wheels.
• Electro-magnetic brake holds the wheel for more accurate weight placement.
• Automatic Approach system allows for faster floor to floor time.
• Power Supply: 220V, 1ph

ER72SE (Pneumatic Clamping)

• Fast 5-second cycle time. Pneumatic locking kit supplied standard.
• Dynamic AutoAdaptive OPB balancing software.
• CEMB balancing software automatically resolves residual static unbalance commonly left behind when dynamically balancing with traditional balancers causing hidden vibration complaints.
• An automatic laser spotter highlights the exact tape-on weight locations.
• Automatic LED lighting at the inside of the wheel greatly increases visibility.
• Automatic 3D direct weight placement (distance, diameter and width measurements) are included standard. No manual key pad entry required to balance wheels.
• Electro-magnetic brake holds the wheel for more accurate weight placement.
• Automatic Approach system allows for faster floor to floor time.
• Power Supply: 220V, 1ph + Air

Power Supply 220V, 1ph, (Air for ER72SE)
Wheel Clamping Type Manual / Pneumatic
Shipping Weight: 300 lbs. (136 kg)
Dimensions:

Max. Rim Diameter 30" (765 mm)
Max. Rim Width 20" (510 mm)
Max. Tire Diameter: 42" (1067 mm)
Max. Wheel Weight: 165 lbs. (75 kg)
