Type of Product: Balancer   |

ER75TD HubMatch®

A high volume RFV diagnostic wheel balancer, which comes in two variations, uniquely uses advanced balancing features such as our Dynamic AutoAdaptive with One-Plane Balancing and RFV measurement combined with HubMatch. All the best features from CEMB balancers are combined with HubMatch to ensure the assembly is round when rolling on the vehicle. The ER75TD comes standard with pneumatic locking.

Features

ER75TD HubMatch® (Pneumatic Clamping)

• Radial Force Vectoring
• Fast 5-second cycle time.
• AutoAdaptive, Dynamic OPB balancing software.
• CEMB balancing software on a touchscreen automatically resolves residual static unbalance commonly left behind when dynamically balancing with traditional balancers causing hidden vibration complaints.
• An automatic laser spotter highlights the exact tape-on weight locations.
• Automatic LED lighting at the inside of the wheel greatly increases visibility.
• Automatic 3D direct weight placement (distance, diameter and width measurements) are included standard. No manual key pad entry required to balance wheels.
• Electro-magnetic brake holds the wheel for more accurate weight placement.
• Automatic Approach system allows for faster floor to floor time.
• Power Supply: 220V, 1ph.

Power Supply 220V, 1ph, (Air for ER75)
Wheel Clamping Type Pneumatic
Shipping Weight: 310 lbs. (170 kg)

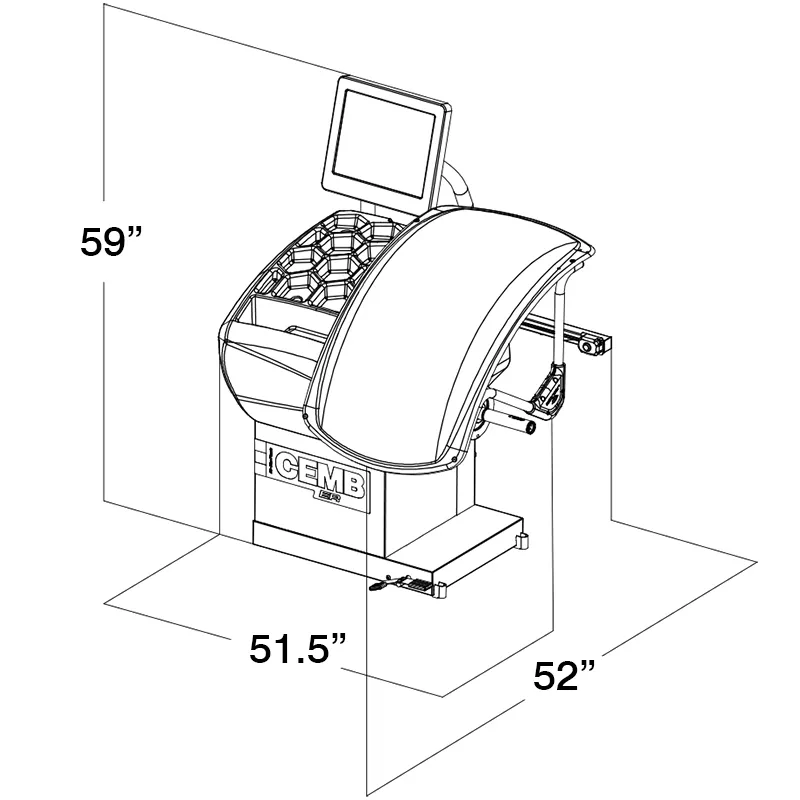

Dimensions:

Max. Rim Diameter 30" (765 mm)
Max. Rim Width 20" (510 mm)
Max. Tire Diameter: 42" (1067 mm)
Max. Wheel Weight: 165 lbs. (75 kg)
