CEMB - ER100GT HubMatch®
Type of Product: Balancer   |

ER100GT HubMatch®

Completely renewed, the ER100GT top-of-the-range wheel balancer, in a matter of seconds and without any manual intervention on behalf of the operator the machine automatically detects all wheel dimensions, unbalance, internal and external wheel and rim eccentricity, tread-depth and continuity.


Features

  • One Plane Balancing (OPB)
  • AutoAdaptive™ Mode
  • Wheel Structure Analysis
  • Ergonomic Design
  • 3D Laser Scan
  • Side Laser
  • Touch Screen
  • Automatic Positioning System
  • Average 6-second cycle time includes automatic RFV* and wheel scanning performed during the balance cycle.
  • Dynamic AutoAdaptive OPB balancing automatically shifts to a single weight balance on over 70% of today’s wheels; gaining a 33%-time savings on every balance.
  • 220V, 1ph. +AIR
  • Radial Force Vectoring
Comes with CEMB’s innovative AutoAdaptive Mode software which acquires the wheel’s weight and dimensions and recalculates the tolerance value so as to cancel any vibration perceived on the steering wheel, ensuring the greatest possible driving comfort and, together with CEMB’s OPB (One Plane Balancing) program, 3D Laser Scan and HubMatch, which clocks the RFV highpoint of the assembly to the vehicle hub before mounting it at the 12 o’clock position, guarantees significant time savings during the balancing process. Also includes TDC Laser (Top Dead Center) for steel rims.

TECHNICAL SPECIFICATIONS


Power Supply 220V, 1ph, Air
Wheel Clamping Type Pneumatic
Shipping Weight: 485 lbs. (220 kg)

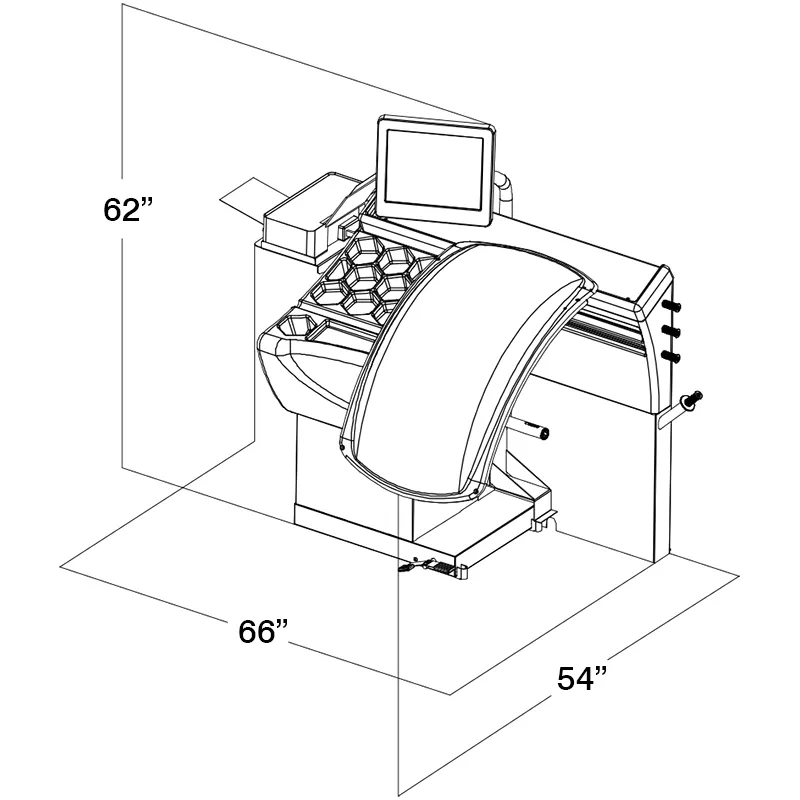

Dimensions:

Max. Rim Diameter 30" (765 mm)
Max. Rim Width 20" (510 mm)
Max. Tire Diameter: 40" (1016 mm)
Max. Wheel Weight: 165 lbs. (75 kg)

DOWNLOAD DOCUMENTS


ER100GT HubMatch® Flyer - PDF
